Thomas Bus Window Parts

Thomas Bus Window Parts

Need help with Thomas window parts?

We can help you!



Call us toll-free at 800/960-1960



Window Parts for School Buses





Window Parts

Catalog Page



Click here to enlarge





















Additional Thomas Window Info



Thomas 1971 - 5/3/95

LK1279 (LH/R/H Platstic Thumb Latch)

LK8768 (LH Metal Latch Bolt)

LK8764 (RH Metal Latch Bolt)

LK8735 (Spring)

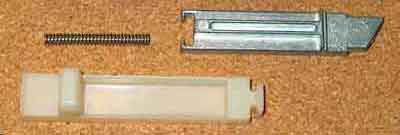

Thomas 5/4/95 - 12/31/03

LK4889 (LH Plastic Latch)

LK4k888 (RH Plastic Latch)

LK4890 (Block)

LK4891 (Spring)

LK4378 (Pin)

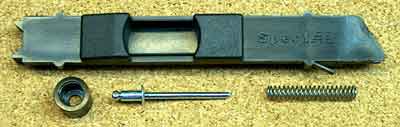

Thomas 1/1/04 - 2006

JK3166 (LH/RH Black Plastic Latch)


Thomas 1/1/08 & Newer

JK3415 (Kit)

Kit includes:

1 LH Latch (Orange Color)

1 RH Latch (Orange Color)

2 Plastic Covers

2 Stoppers

2 Springs


Thomas 1/1/04 - 12/31/07

JK3150 (Kit)

Kit includes:

1 LH Latch Assembly

1 RH Latch Assembly

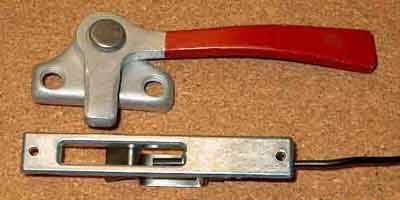

Thomas 1971 - About 1990

This emergency window handle has been discontinued and is no longer available. However, the switch is still available.

LK2623 (Switch)


Thomas 2002 & Older

LK1530 (Handle)

LK2246 (Switch)

This handle length is about 5-1/4" from pivot point to end.


Thomas Window Handles

Thomas 2003 & Newer

JK1341 (Handle Kit Spectal)
