Carpenter School Bus Window Parts

Carpenter Bus Window Parts

Looking for Window Parts for a Carpenter School Bus? We don't provide the window, but we can help with some of the parts!

The following catalog page will help you find the parts you need to get your windows
back in service again.



down arrows





Window Parts for School Buses





Window Parts

Catalog Page



Click here to enlarge






















To better assist you, please have the following information when you call:



1. Year model of bus, and passenger capacity

2. Bus chassis - IH, Ford, Freightliner, Vision, GMC, Chevrolet, etc.

3. Body type - conventional, flat nose transit, van, etc.

4. Description of the window part, what part "does"

5. Any part numbers you may have

6. Last (8) digits of the VIN number, and body number, if possible







Carpenter 95 - UP

These "white" latches also used a small Block and Pin retainer system.
LK4889 (LH Plastic Latch) LK4888 RH Plastic Latch)
LK4890 (Block) LK4891 (Spring) LK4378 (Pin)





Carpenter 95 - UP

This handle length is about 5-1/4" from pivot point
to end. LK1530 (Handle) LK2246 (Switch)









Vintage Carpenter Window Parts



Carpenter 1971 & Older
Metal latch bolts and spring are no longer available.




Carpenter 1969 - 76

Carpenter offered windows with aluminum frames (using this type latch) beginning in 1969 as optional equipment. When the steel sash was phased out in 1971, this latch became standard. LK1429 (LH Latch) LK1278 (RH Latch)




Carpenter 77 - 91
Carpenter used these window parts for about 24-years without any changes.
LK1279
(LH/RH Plastic Thumb Latch) LK2280 (LH Latch Bolt)
LK2281
(RH Latch Bolt)LK2282 (Spring no longer available)

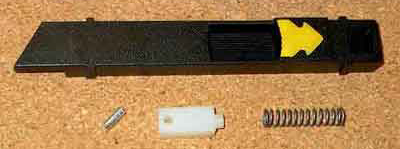

Carpenter 91 - 95
Available in kit only (LH and RH). Part No. JK5504 Spring Part No.
LK4891 Block Part No. LK4890 and Pin Part No. LK4378





Carpenter 69 - 91

This emergency window handle is no longer available. Switch Part No. LK2623






Carpenter 91 - 95
This handle length is about 3-1/2" from pivot point
to end. LK7758 (Handle) LK2623 (Switch)
