School Bus King Pins

Looking for king pins for a school bus front axle? Just follow the red arrows!

Click here to see King Pin Sets we have in stock

The following catalog pages are of the different king pins with their part numbers. When you call us, please provide the part number along with your axle size, description of king pin, the last 8 of the VIN and the make and year of your chassis, so that we may help you more efficiently. Also, an OEM part number would be helpful.

Chevy /GMC

Catalog Page

Click here to enlarge

Ford / Int'l

Catalog Page

Click here to enlarge

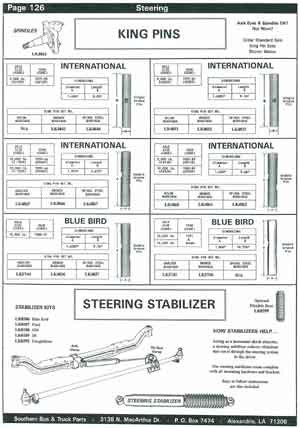

King Pins -

Int'l /Blue Bird

Steering Stabilizer

Catalog Page

Click here to enlarge

King Pins We Have In Stock

Ford

Part No. LK4809 (1)

This King Pin Set is for Ford Chassis 1961-79 with axle weight 5-5,000 lbs.
It measures 1.2305"/7.86" and has one (1) groove.

Part No. LK4813 (2)

This King Pin Set is for Ford Chassis 1967 & newer with axle weight 6-7,000 lbs.
It measures 1.2305"/8.89", and has one (1) groove.

Part No. LK4814 (2)

This King Pin Set is for Ford Chassis 1967 & newer with axle weight 6-7,000 lbs.
It measures 1.2305"/8.89" and has one (1) groove.

Part No. LK4800 (2)

This King Pin Set is the 0.010" oversize version of LK4814.

GM (Chevrolet & GMC)

Part No. JK1337 (2)

This King Pin is for GM Chassis 1993 & Newer, with axle weight of 10,000 lbs. It measures 1.892"/9.604."

This King Pin Set is just a "1/2-set;" it contains only (1) king pin and is sufficient to repair only (1) end of the axle.

Part No. JK1323 (1)

This King Pin Set is for GM Chassis 1993-up with axle weight of 8,100 lbs.
It is measures1.614"/8.035"

This is a set of (2) pins and will repair a comlete axle.

Part No. LK4786 (1)

This King Pin Set is for GM 1964-75 with axle weight of 5,000 lbs and 1973-75 with axle weight of 5,500 lbs. It measures 1.109"/6.34."

Part No. LK4789 (1)

This King Pin Set is for GM Chassis 1975-79 with axle weight of 5,500 lbs.
It measures 1.179"/6.36."

Part No. LK4794 (1)

This King Pin Set if for GM Chassis 1965 & up with axle weight of 7-7,500 lbs.
It measures "1.2495/7.88.

Part No. LK4797 (1)

This King Pin Set is the 0.010" oversized version of LK4786.

Part No. LK4798 (1)

This King Pin Set is for GM Chassis 1975 & up with axle weight of 9,000 lbs. (F12OD).
It measures 1.745"/9.38."

IH/IHC

Part No. LK4472 (1)

This King Pin Set is for an IH Chassis 1990-up. It measures 1.359"/7.97" and
has (2) grooves.

Part No. LK4830 (2)

This King Pin Set is for an IHC FA-91, 98 &101. It measures 1.234"/7.66,"
and has (1) groove.

Part No. LK4822 (2)

This King Pin Set is for IHC FA-68 & 72, and 1962-75. It measures 1.234"/6.75,"
and has (1) groove.

Part No. LK4834 (1)

This King Pin Set is for IH Chassis 1990 & newer with axle weight of 6-8,000 lbs. It measures 1.359"/7.97," and has (2) grooves.

This set is the "Double Pin" type. One center of groove is 3-1/4" from the end of the pin and the center of the other groove is 3-1/8" from the other end of the pin.

** For nylon bushing go to Part No. LK4472

Part No. LK4808 (1)

This King Pin Set is the 0.015" oversize version of LK4830.

Part No. LK4856 (1)

This King Pin Set is for IH FA-309 & B/B 10,000 lbs axle. It measures 1.6085"/9.16," and has (2) grooves.

Part No. LK4865 (1)

This King Pin Set is for IHC 1990-up, 02ADC & 02ADD. It measures 1.921"/9.87,"
and has (2) grooves.
