School Bus Drag Links

Looking for drag links for a school bus front axle? Just follow the red arrows!

Click here to see the drag links we have in stock

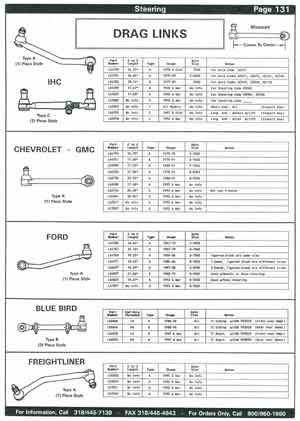

The following catalog pages are of the different drag links with their part numbers. When you call us, please provide the part number along with the dimensions of drag link needed, the last 8 of the VIN and the make and year of your chassis, so that we may help you more efficiently. Also, an OEM part number would be helpful.

Click here to enlarge

Drag Links We Have In Stock

Ford

Part No. JK4191 (1)

This drag link is believed to be used on 4/95 and older Fords with 5.9 Cummins engine and Ross Steering Gear. It measures 19.47" center to center.

It has a larger stud at the pitman arm and a smaller stud at the wheel control arm.
At Wheel Control Arm - 0.967" / 1.102" and At Pitman Arm - 1.080" / 1.250"

Part No. LK4765 (1)

This drag link is for Ford chassis 1967 - 79 with axle weight of 5, 5,5, 6, & 7,000 Ibs. and measures 16.64" center to center.

It has a slight bend at each end. The tapered studs are the same size on each end.

Part No. LK4767 (2)

This drag link is for Ford chassis1967-79 with axle weight of 6,000 & 7,000 Ibs. and measure 16.16" in center to center.

It has a slight bend at each end. Tapered studs are the same size on each end.

Part No. LK6677 (1)

This drag link was briefly used on Ford B-600's chassis 1987-88 with axle weight of 6,000 lbs and measures 19.29" in length.

It has a slight bend at each end of the bar. The tapered studs on each end are different sizes. One stud measures 0.783" and 0.890" The other stud measures 0.967" and 1.102."

GM (Chevrolet and GMC)

Part No. LK4759 (1)

This drag link is for GM chassis 1968-75 with axle weight of 5,500 lbs and 7,000 lbs and measures 16.75" center to center.

It is a straight bar with tapered studs the same size on each end.

Part No. LK4763 (1)

This drag link if for GM chassis1979-91 with axle weight of 9,000 lbs. and measures 17.96" center to center

It has a straight bar with tapered studs the same size on each end.

IHC

Part No. JK4929 (1)

This drag link is for 1990 & newer IHC conventionals and measures 28.50" center to center. It has one bend on the end and a taper length of 1.024."

Part No. LK4781 (2)

This drag link is for IHC chassis with axle codes FA-71, 73,101 & 104 and measures 17-1.4" from zerk to zerk.

Part No. LK6835 (1)

This drag link is for IH chassis 1990 & newer with 05PRH & 05PSA.

It has a taper length of 1.080."

Click here for main steering page

Click here for product index page

Return to Top

Call us toll-free at 800/960-1960
