Emergency Escape Hatches

Need help with an emergency escape hatch? We can help! Just follow the red arrows!

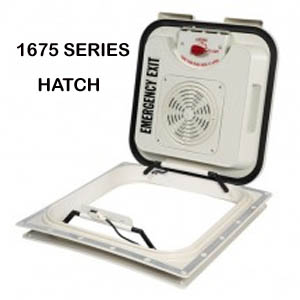

If your escape hatch resembles

this one, then it is a Specialty hatch

and is no longer available. You will

need to find an alternative

escape hatch, and they can be

found below.

The big question that needs answering when looking for an escape hatch is whether or not your roof is curved or flat. Here are pictures of 3 Transpec escape hatches that are currently available.

The way to figure out if you need a roof hatch for a flat or curved roof is the following:

Take a straight edge and put it on the center of the roof. Follow the edge till you come to the first gap between the roof and the straight edge.
(should be about the size of the roof hatch.)

Now, measure that gap. If it is 1/4" then you need an LK2115. If the gap is 3/4", then you will need an LK6867.

This hatch would be for a vehicle
with a curved roof.

It has the following:

Emergency Exit

5-Position Ventilation

Outside Release Handle

Alarm Switch

Part No. LK6867

This hatch would be for a vehicle
with a flat roof.

It has the following:

Emergency Exit

5-Position Ventilation

Outside Release Handle

Alarm Switch

Part No. LK2115

This hatch fits nearly flush with a
vehicle's roof; it is for low
profile garages.

It has the following:

Emergency Exit

5-Position Ventilation

Outside Release Handle

Static Air Vent

Part No. JK1859

Now, if your vehicle already has a hatch and you need parts for it, then the following catalog page may help you; it has a parts list with its' part number. When you call us, please provide the part number and series of escape hatch that you have so that we may help you more efficiently.

Click here to enlarge

The release hinge is no longer availabe as a separate item, only the cover is sold separately. But there is a conversion kit (pictured below) that should get you out of trouble. If the kit doesn't work, then you must install a new roof hatch assembly.

Interior Release Handle

Release Handle Conversion Kit for Transpec Roof Hatches. Part No. JK3619

Click here for the main roof hatch page

Click here for product index page

Return to Top

Call us toll-free at 800/960-1960
